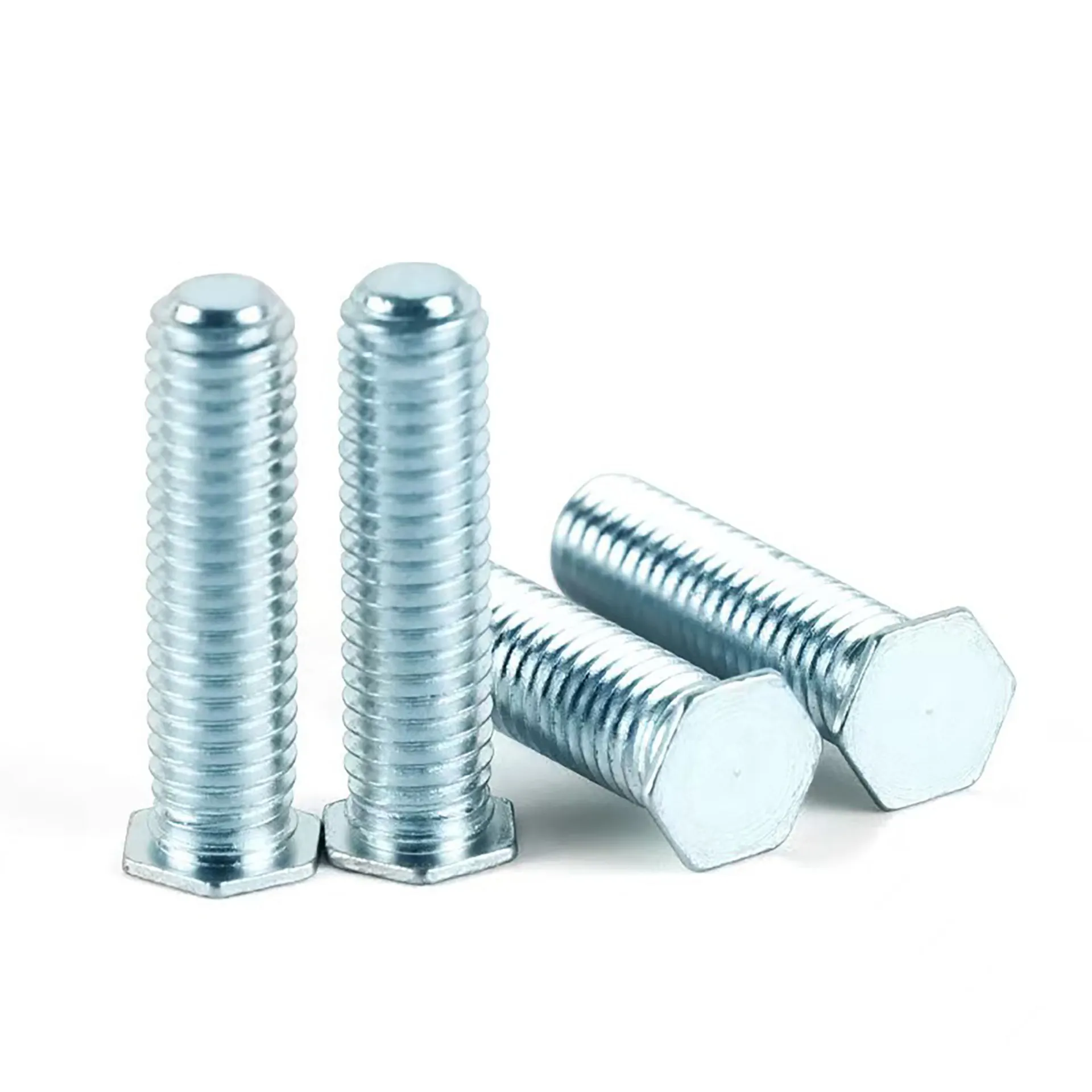

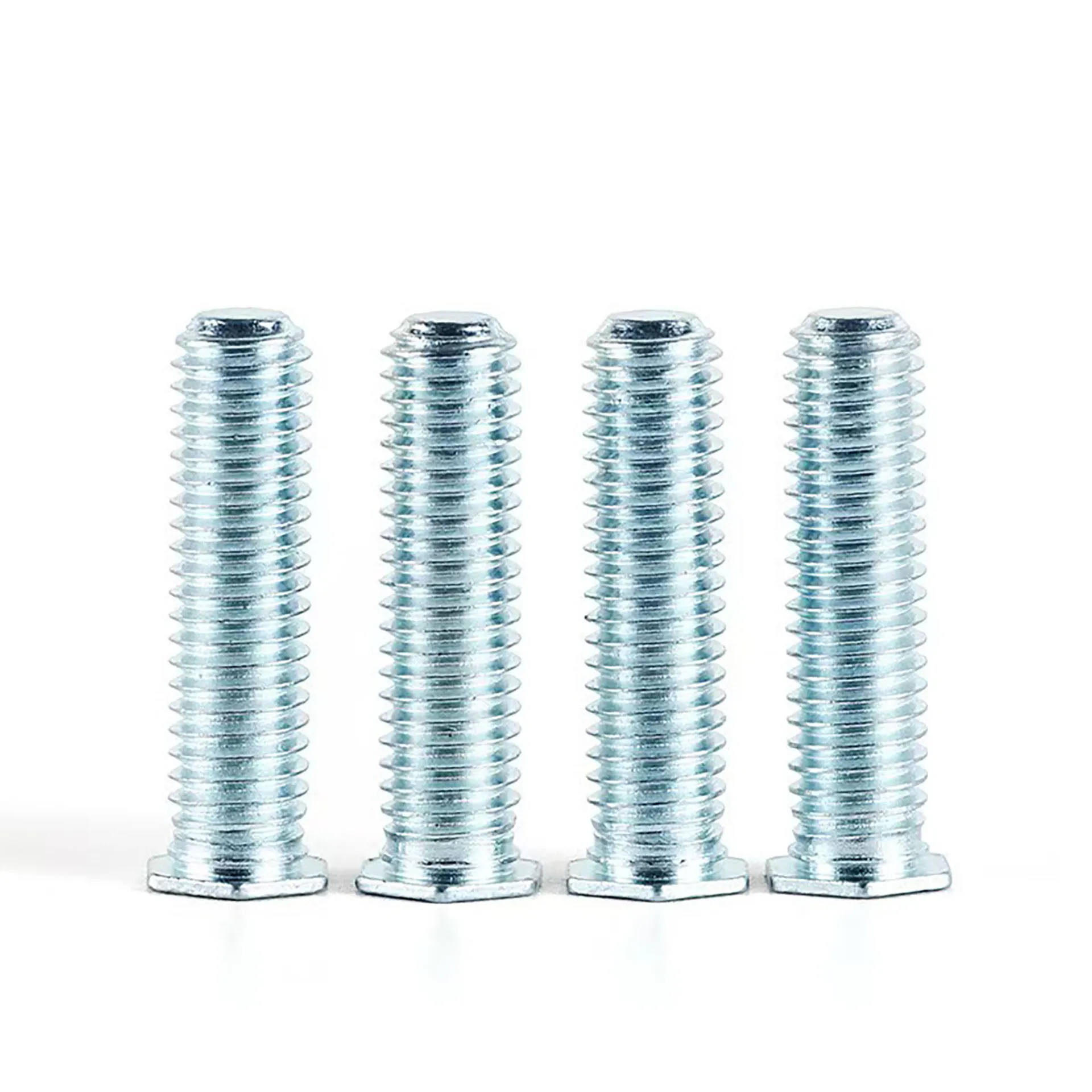

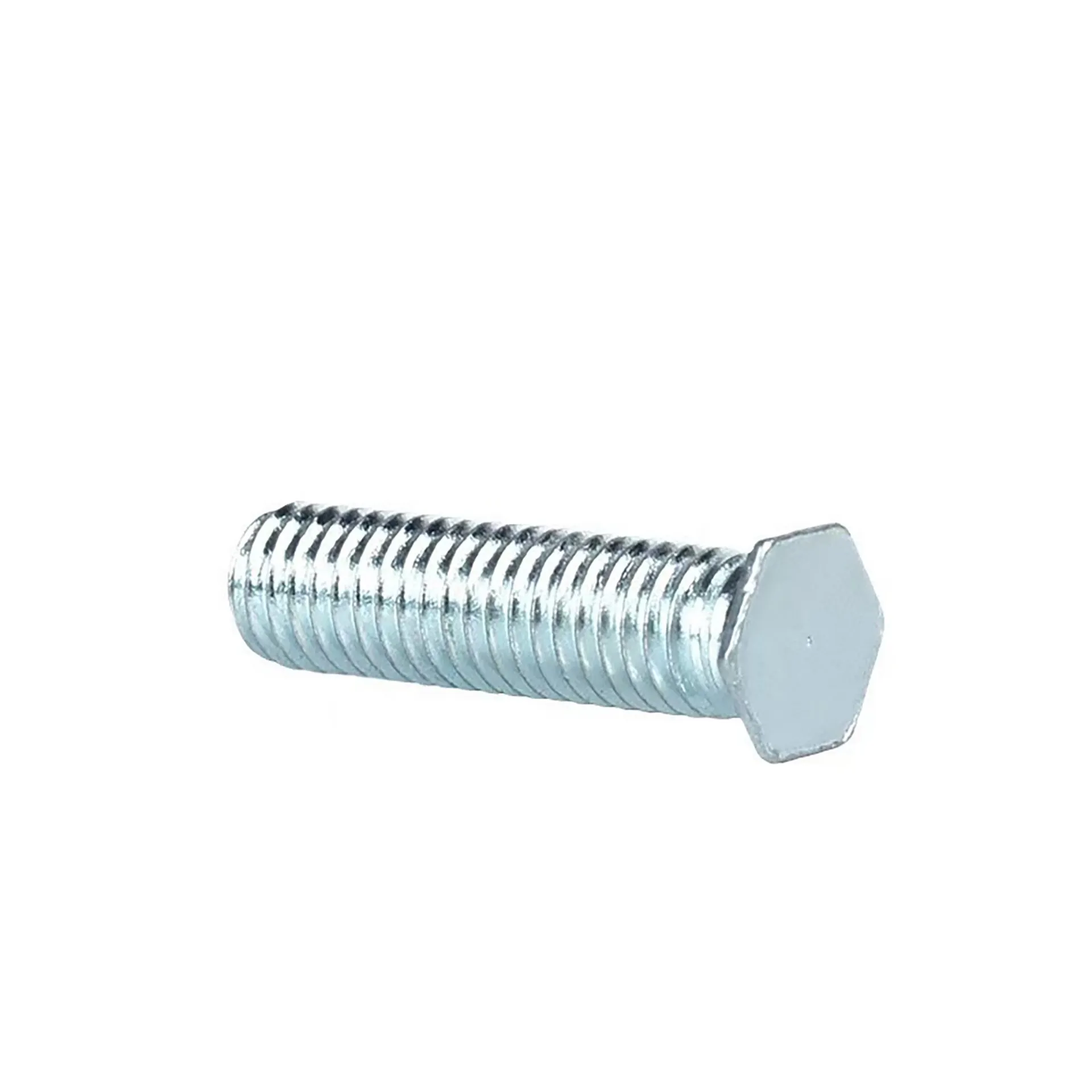

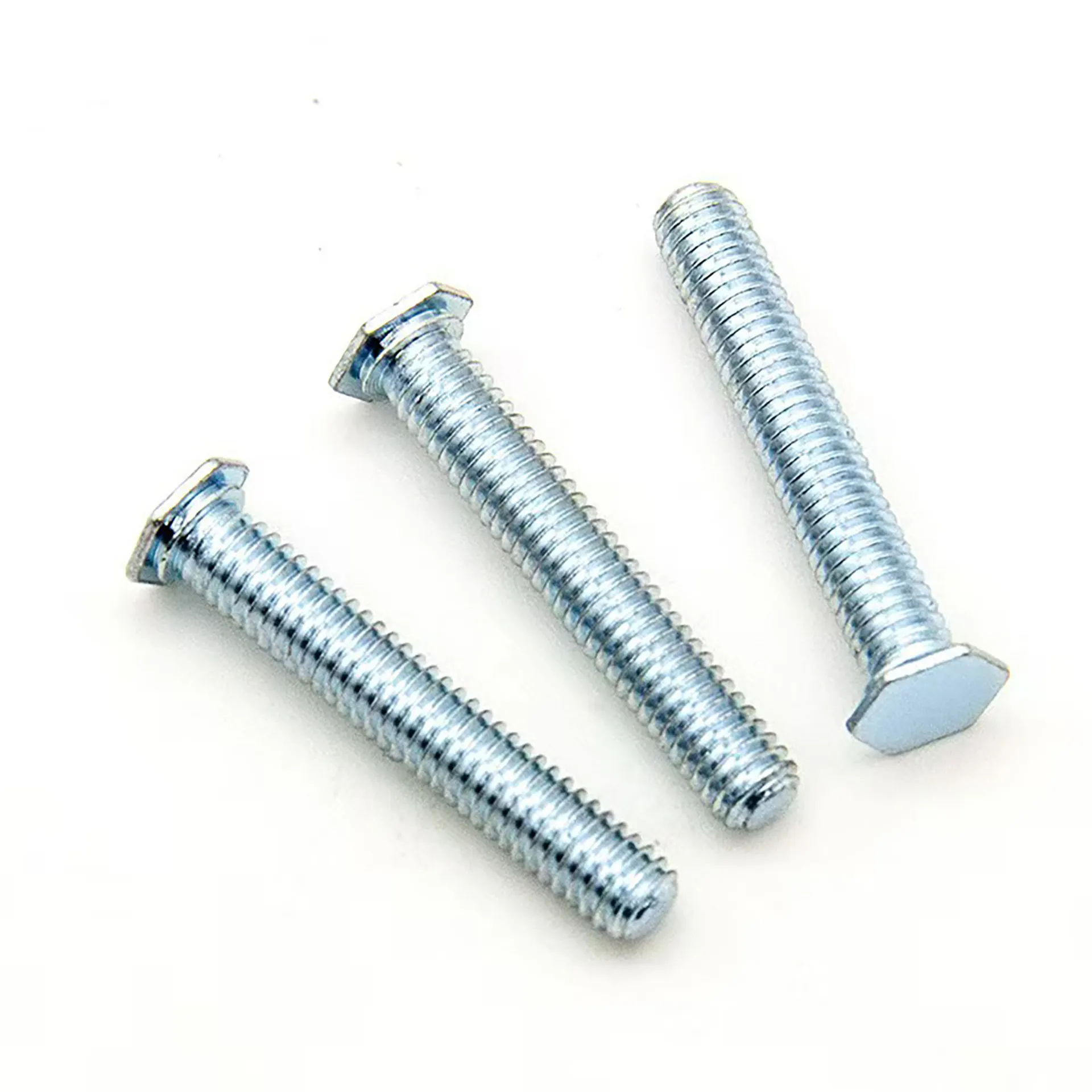

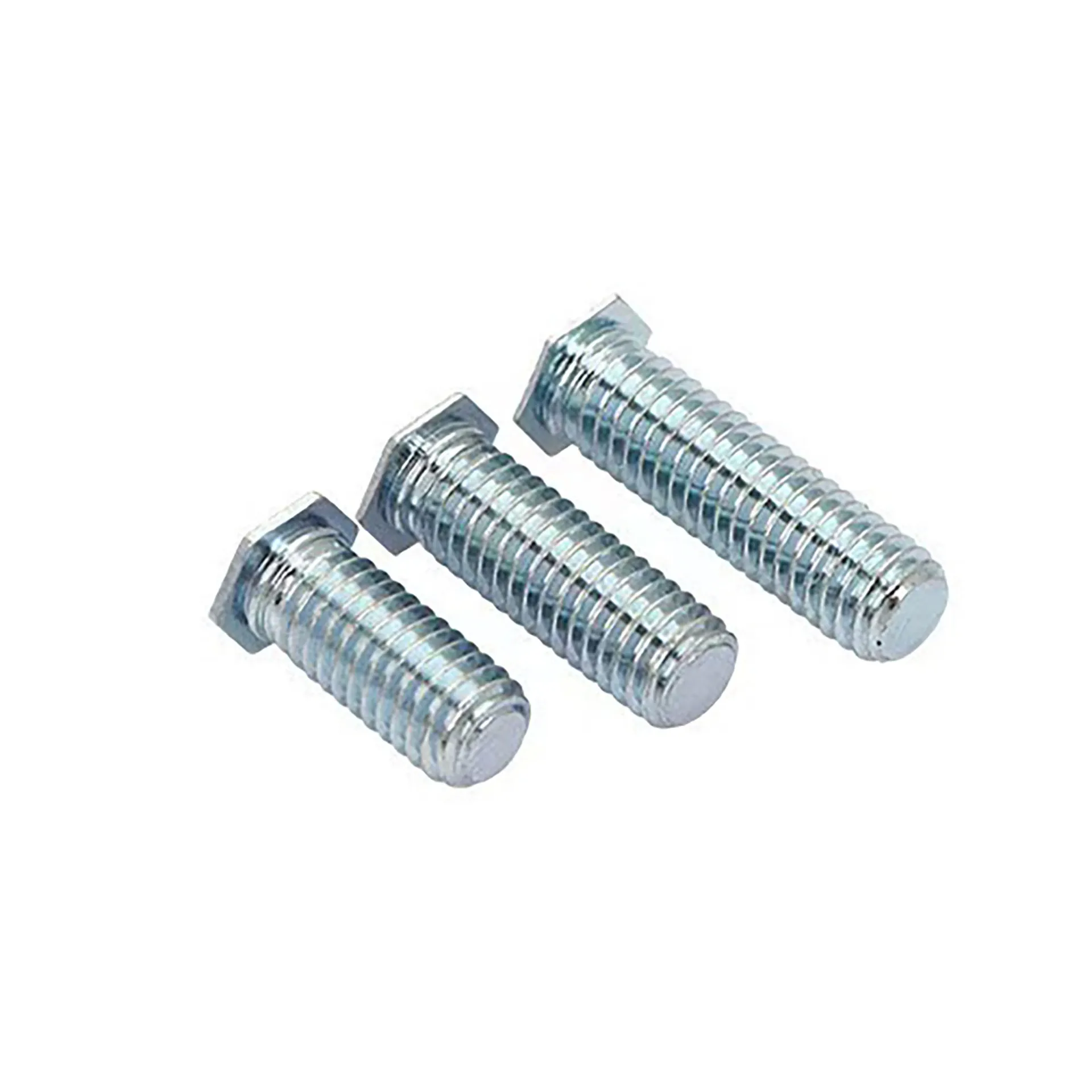

Hex Head Self-Clinching Screws | NFH & NFHS Series | PEM® Type

Hex head self-clinching screws are threaded fasteners manufactured through a cold heading process. Featuring a hexagonal head for tool engagement, their specially designed shank and collar enable them to be permanently pressed into ductile sheet metal, creating a strong, threaded standoff that requires no nut. This connection method offers advantages in both installation efficiency and structural strength.

DESCRIPTION

PRODUCT Tags

Anti-Loosening Mechanism
The anti-loosening feature of hex head self-clinching screws primarily relies on the hexagonal locking feature of the head, which is achieved through machining processes. This structure enhances the stability of the threaded connection but results in higher production costs and increased installation complexity.

Structural Characteristics

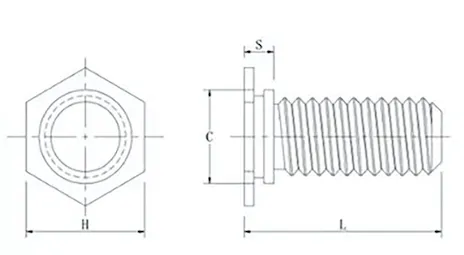

The head features a standard hexagonal shape with a smooth surface and no recess, similar to the threaded portion of a hex head bolt, but with significant differences in head design. In contrast, socket head cap screws have a circular head with a hexagonal recess, and common variants include button head, pan head, and flat head styles. Headless screws and set screws also fall into this category.
