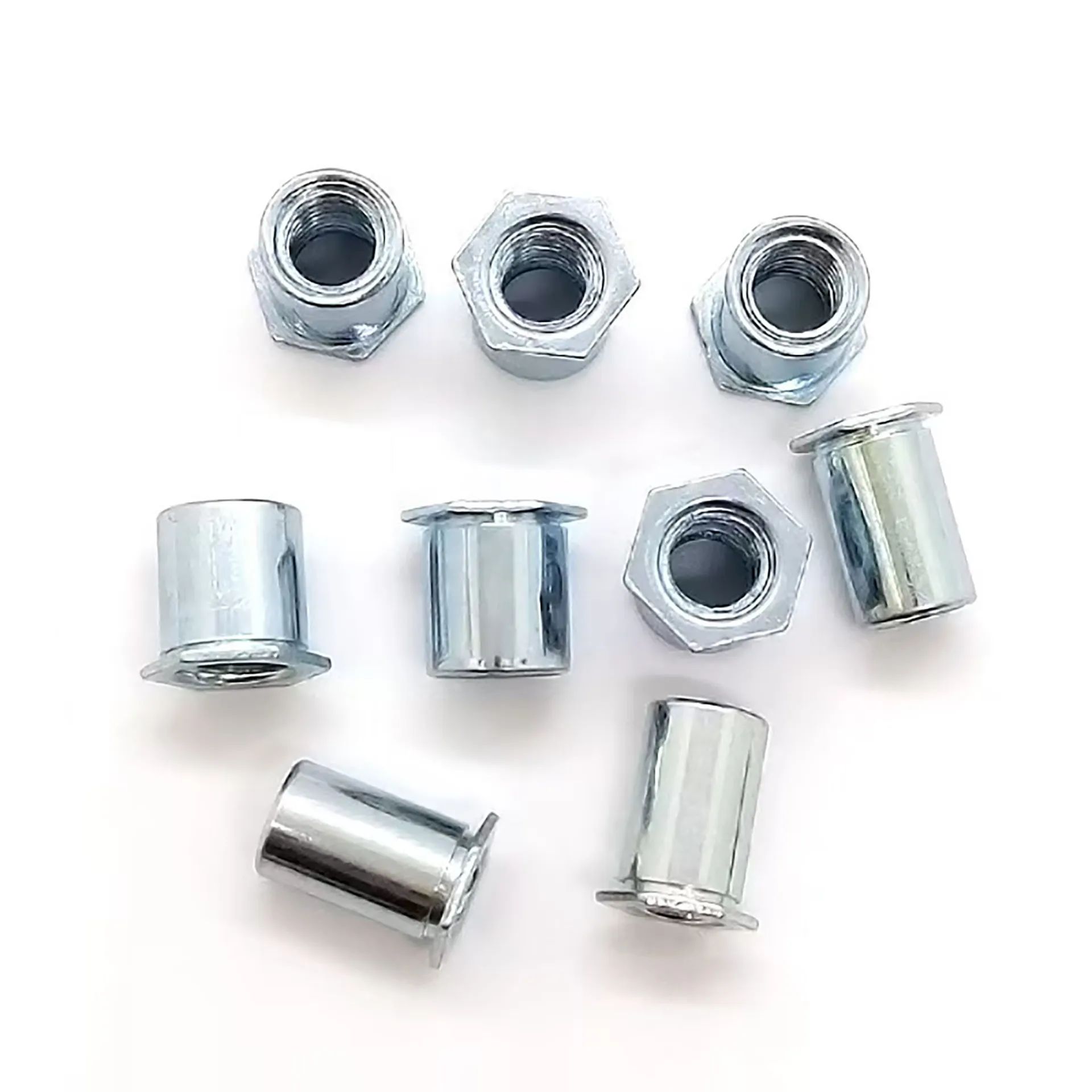

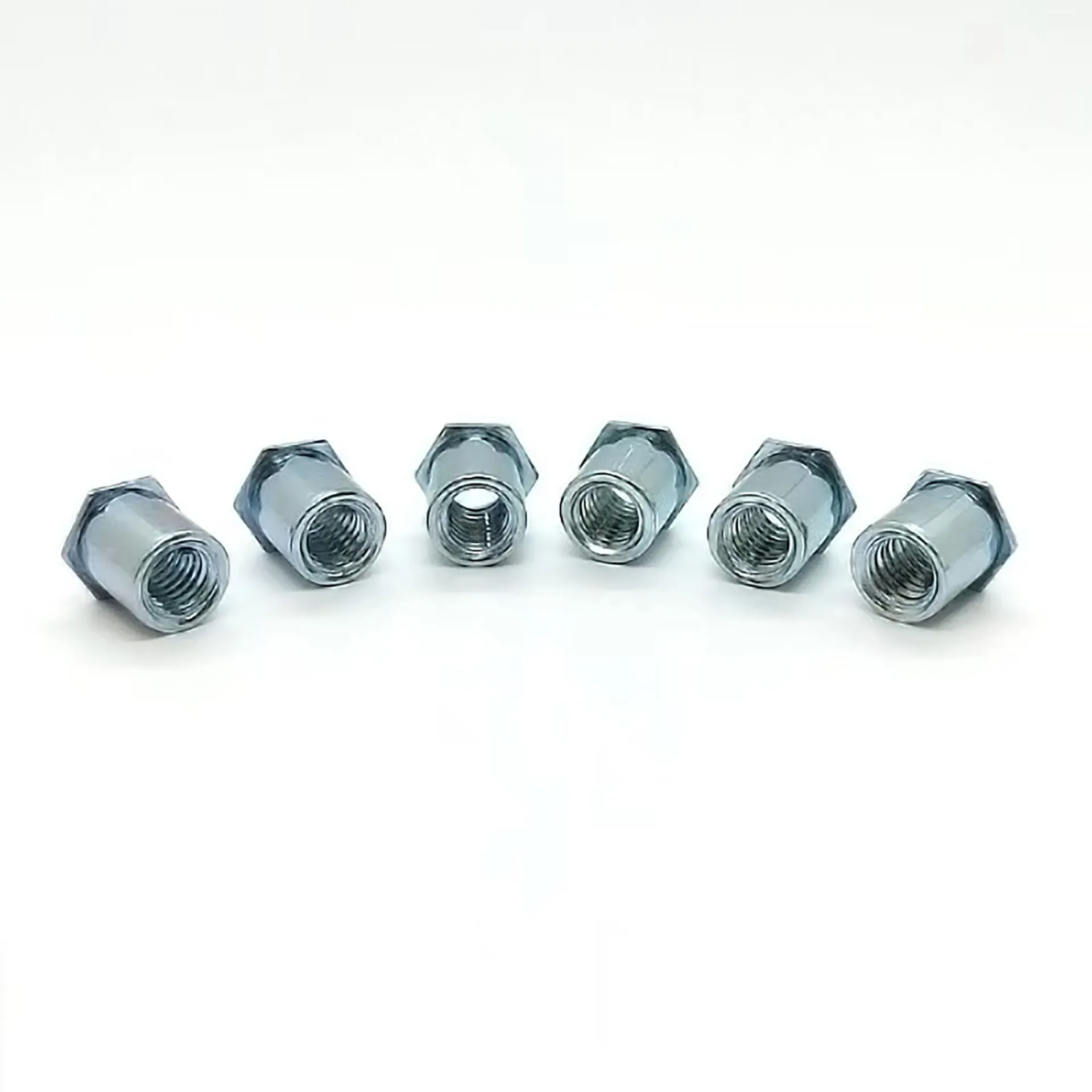

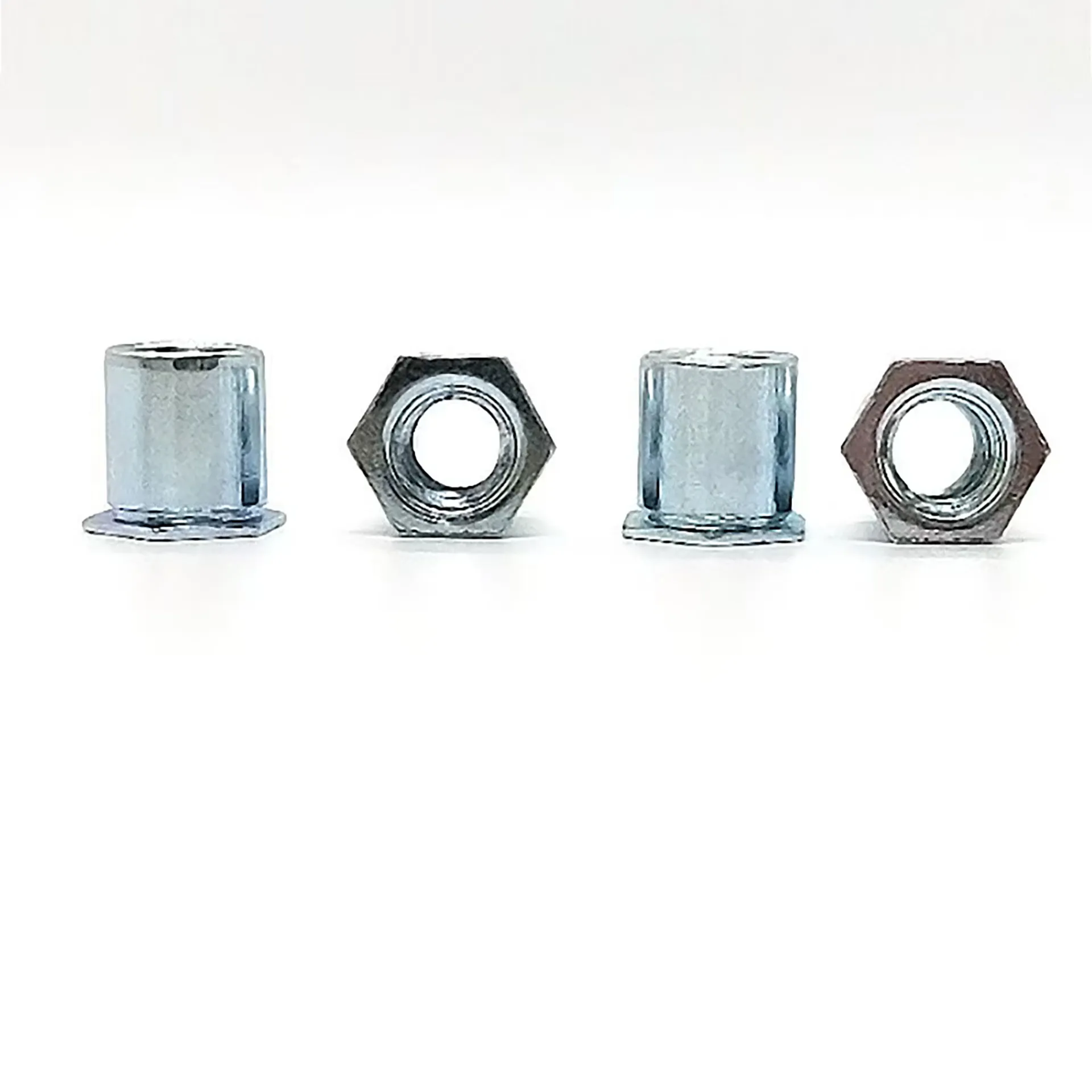

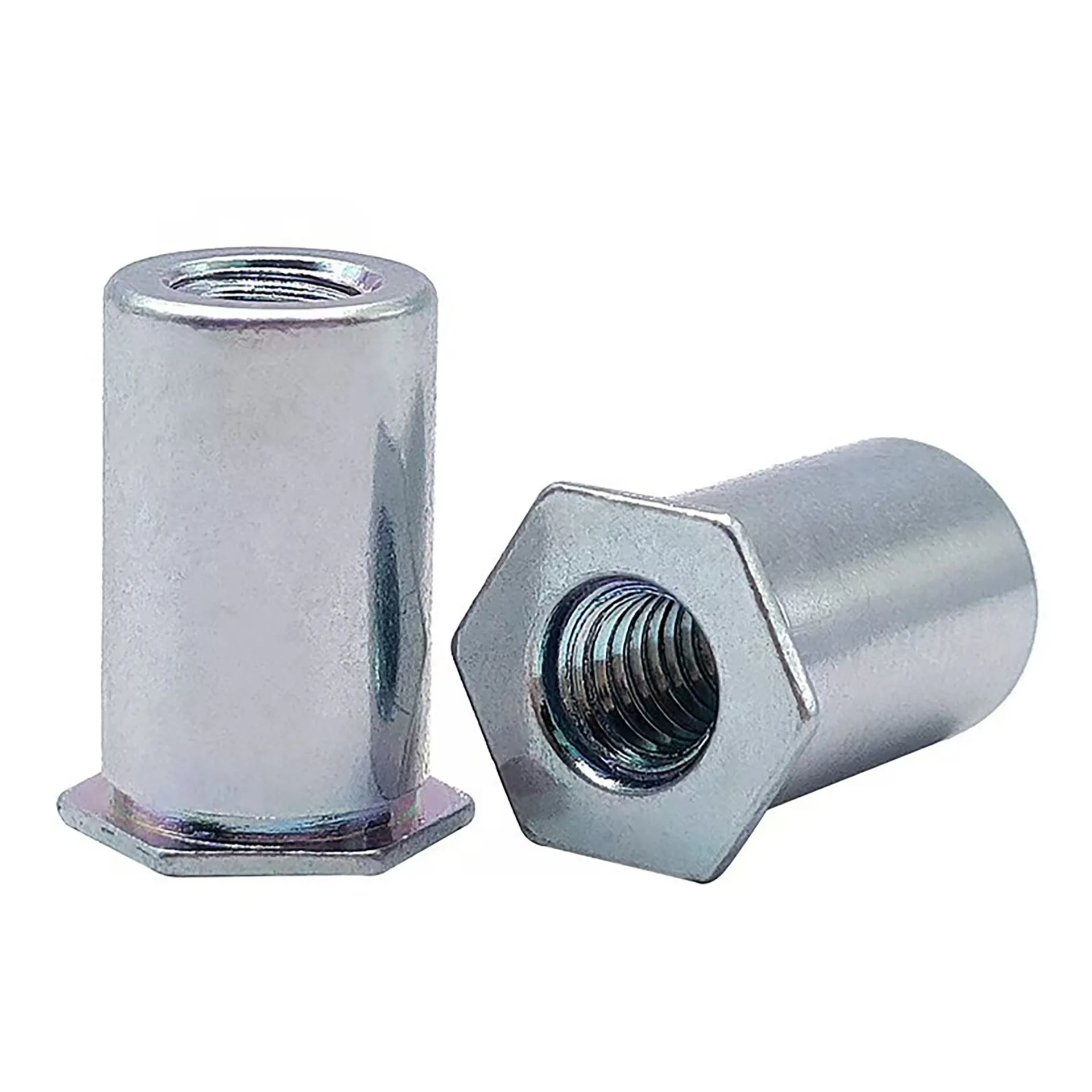

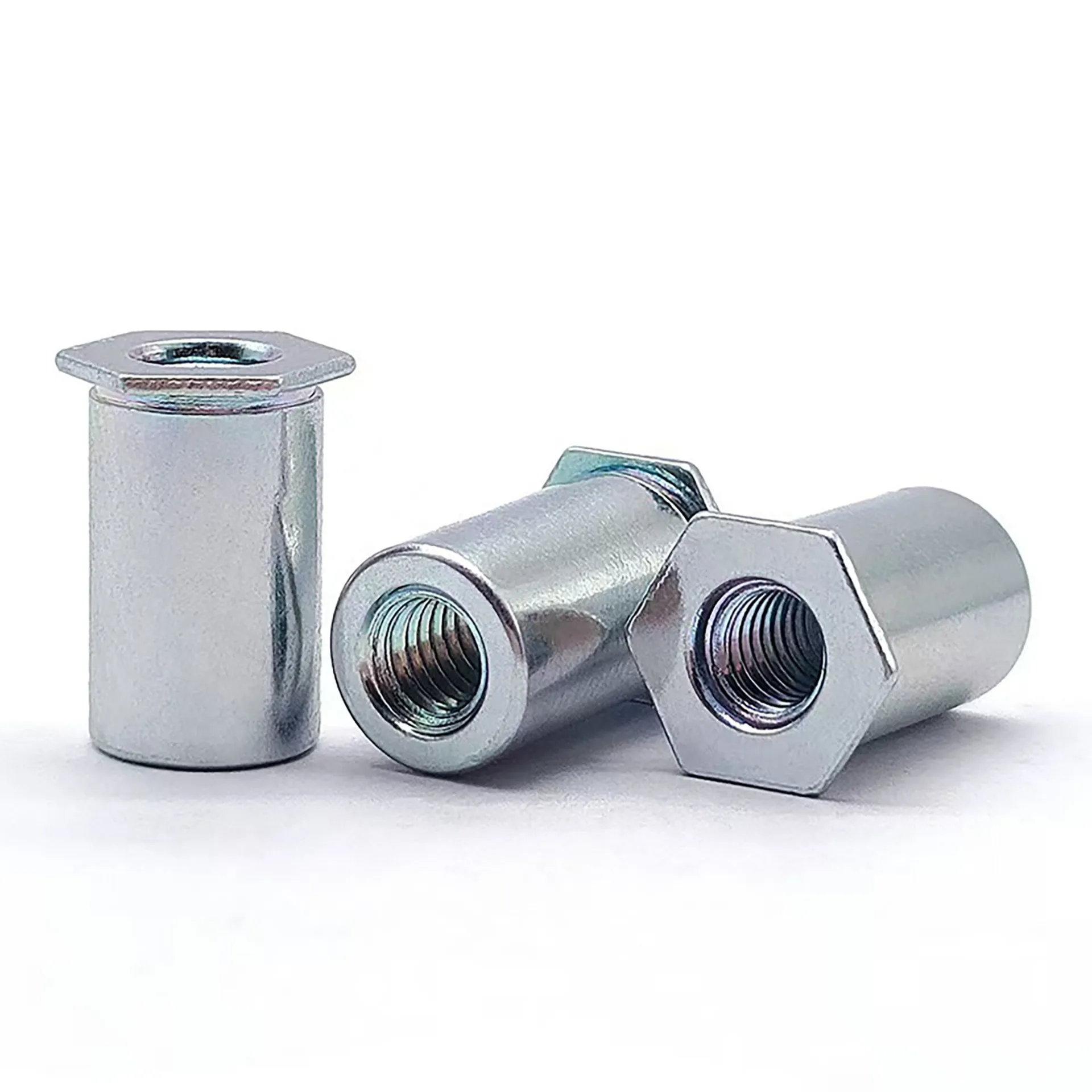

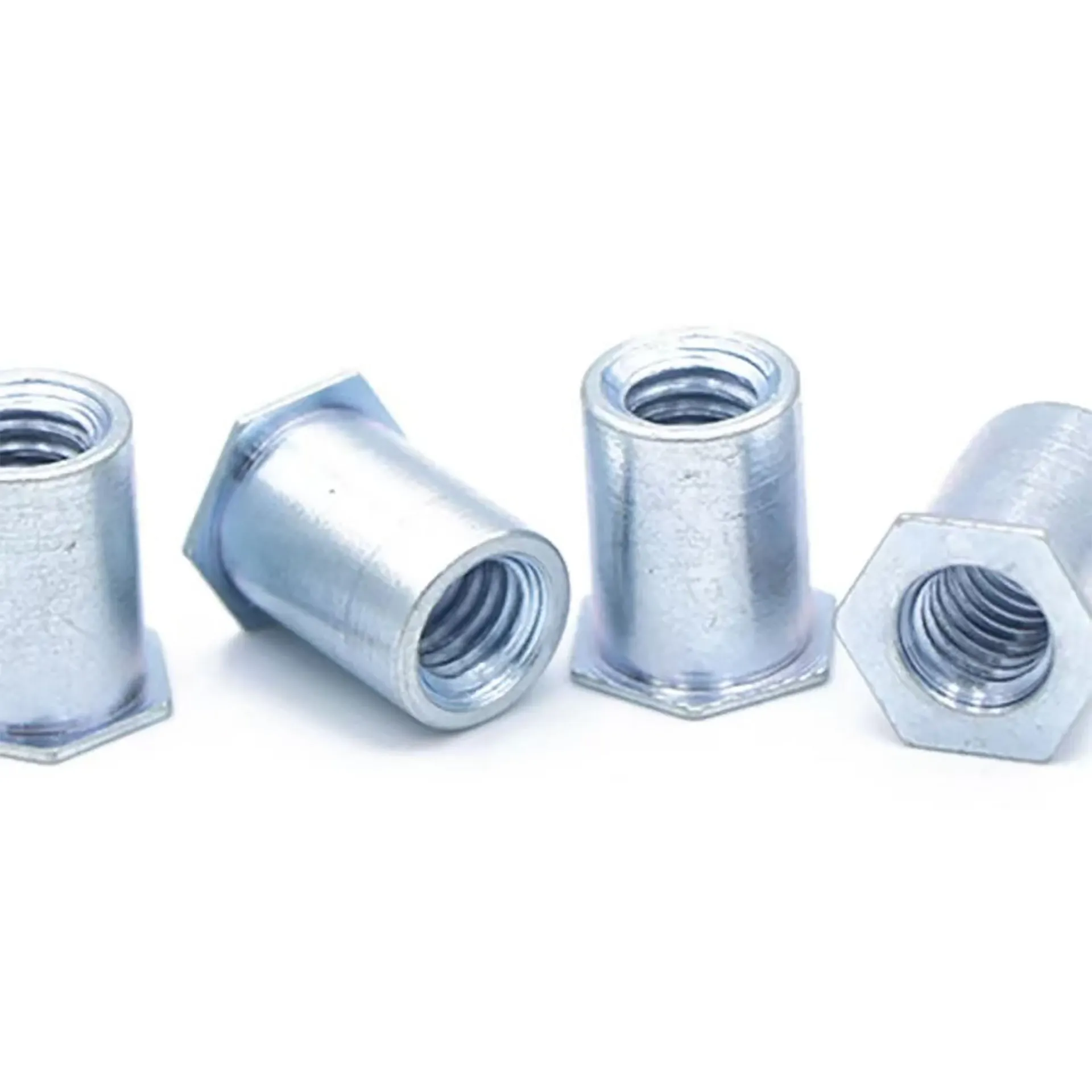

Self-Clinching Stud - Through Hole - M3-M8 Metric - Stainless Steel SS304 | Carbon Steel

Features of Through-Hole Self-Clinching Studs

The diameter of the through-hole is larger than that of the stud, allowing for increased contact area between the stud and the material, resulting in a more secure connection.
The threads of the stud fit more tightly with the hole wall, reducing friction between the stud and the material, thereby minimizing material wear.
Through-hole self-clinching studs are suitable for materials with greater thickness, enhancing both the strength and stability of the material.

Application Scenarios

Sheet Metal and Enclosures
Ideal for assembling metal structures such as chassis and cabinets, self-clinching technology enables secure connections between thin plates, particularly suited for applications with strict space constraints.

Electronics
In PCB connections, blind hole self-clinching studs provide component fixation and spacing support, preventing protrusions that could interfere with subsequent assembly processes.

Industrial Equipment
Commonly used in equipment exposed to humid or harsh environments for extended periods, blue-white zinc plating enhances surface corrosion resistance and extends service life.
