Torx Pan Head Tri-Lobular Screw | Self-Tapping | Zinc Plated

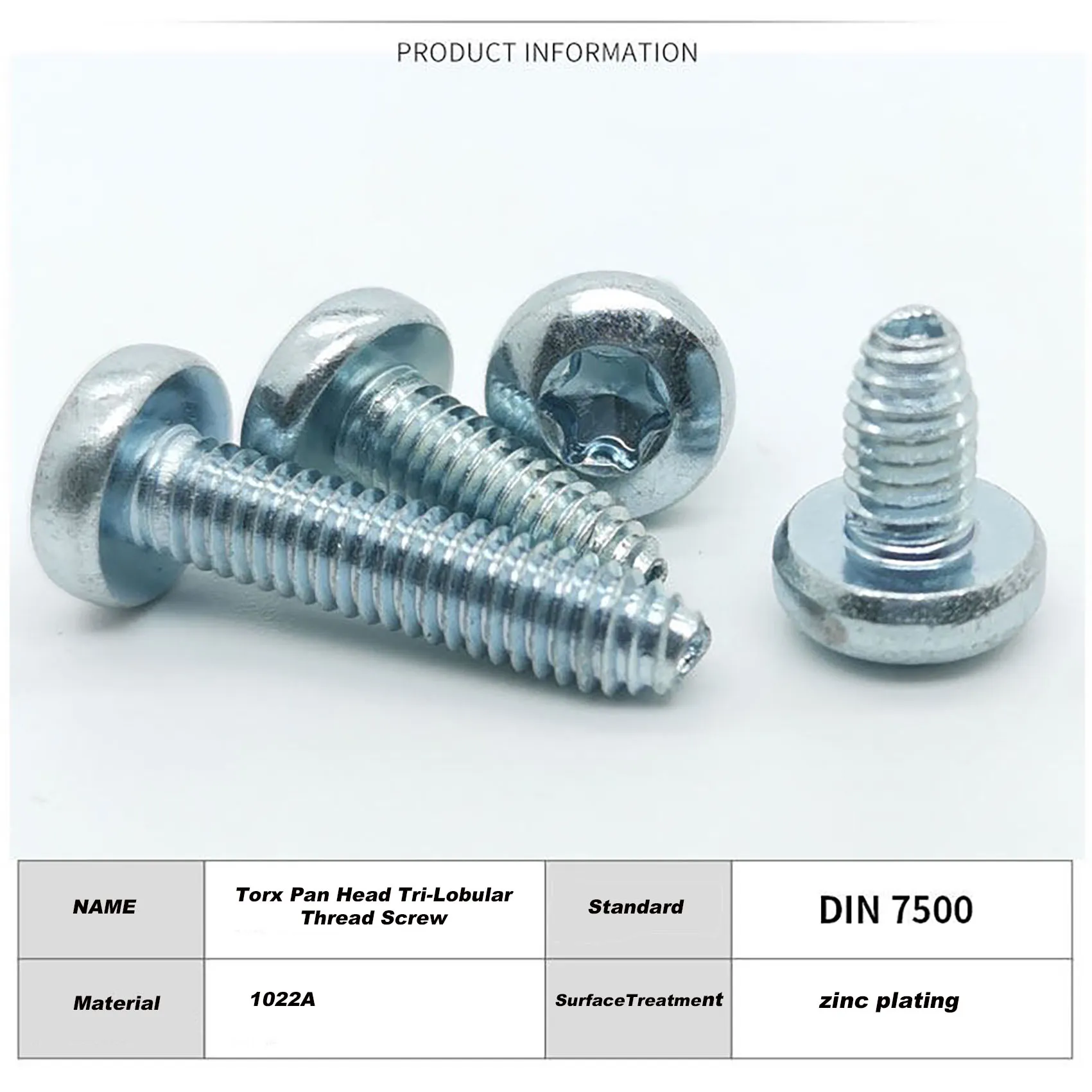

Torx Pan Head Tri-Lobular Thread Screw
Engineered for high-torque anti-loosening applications. Torx drive provides 6-point engagement for 300% higher torque transfer vs Phillips, while tri-lobular thread creates permanent mechanical locking through cold-forming. Pan head ensures even load distribution. Compliant with ISO 14583, ideal for automotive engines, industrial robots, and heavy machinery.
Key Features
✅ Max Torque Transfer：Zero cam-out risk at ≥10N·m torque (M6 size)
✅ Permanent Locking：＞90% residual clamping force after 100k vibration cycles
✅ Robotic Installation：Torx TR drive compatible with auto-feed systems
✅ Military-Grade Durability：A4-80 SS (2000h salt spray) / Titanium (500℃)

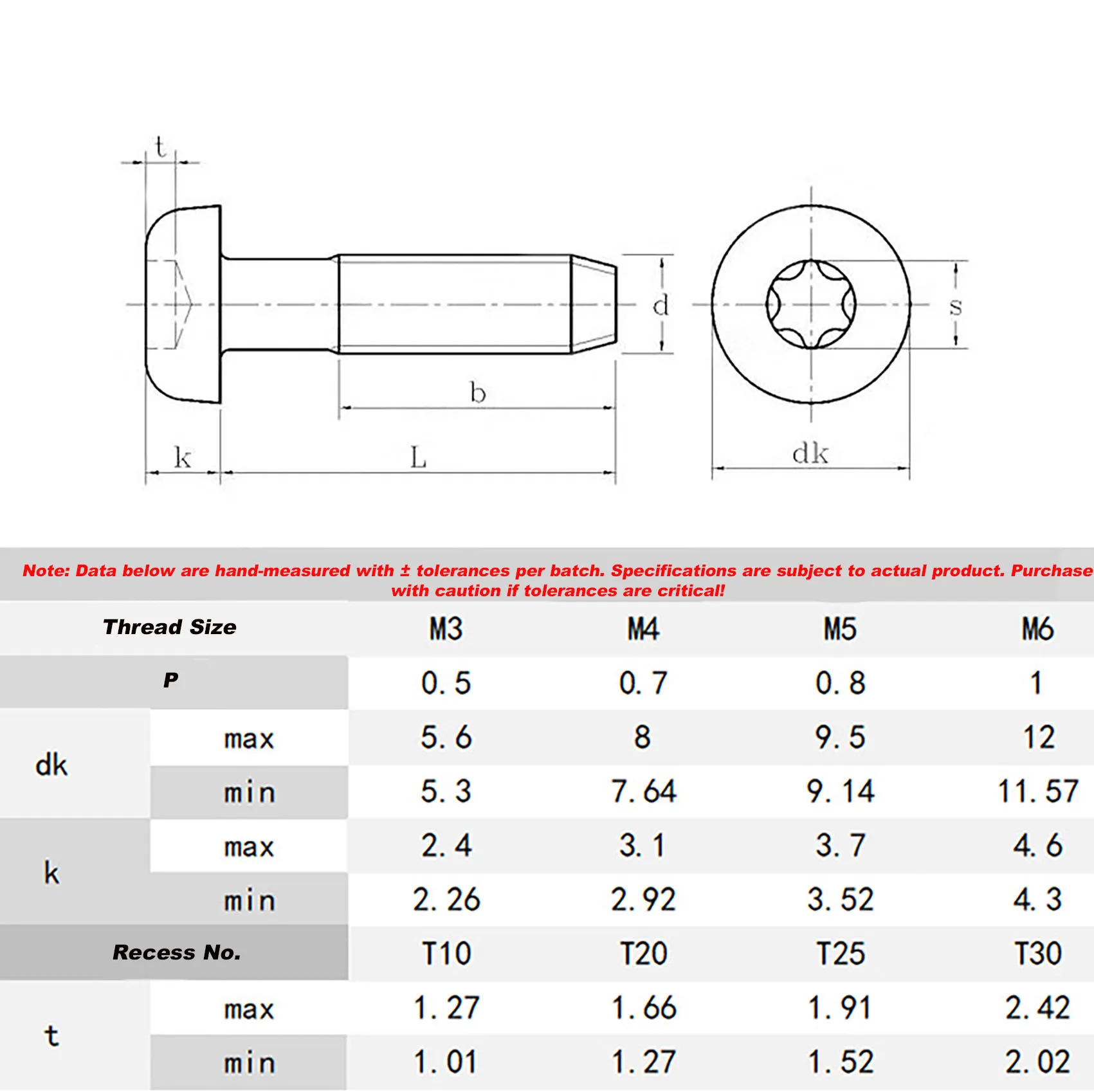

Technical Data
|
Head Standard |
Pan Head (ISO 14583) |
|
Drive Type |
Torx TR (ISO 10664) |
|
Thread Standard |
Tri-Lobular (ISO 15480) |
|
Diameter |
M3 - M12 |
|
Torque Range |
0.5-25N·m (size-dependent) |
|
Standard |
GB 2672 /DIN7500 |
Parameter
Key Applications:
Tri-Lobular Thread Screws leverage their tri-lobular thread cold-forming locking mechanism to address fastener loosening failures caused by high-frequency vibration/dynamic loads. They are indispensable in the following fields:
|
Industry |
Typical Application |
Failure Consequence |
Solution |
|
Automotive |
Engine mounts, Transmission housings |
Bolt loosening may trigger accidents |
M8-M12 high-strength tri-lobular screws (Grade 10.9) |
|
Rail Transport |
Railway signaling equipment, Carriage connectors |
Vibration-induced control system failure |
A4 stainless steel tri-lobular screws + Anticorrosive coating |
|
Aerospace |
Avionics equipment brackets |
Extreme vibration causing device displacement |
Titanium alloy tri-lobular screws (40% weight reduction) |
|
Industrial Robots |
Joint bearing fixation units |
Micromovement from repetitive motion |
M4-M6 micro-sized tri-lobular screws |
