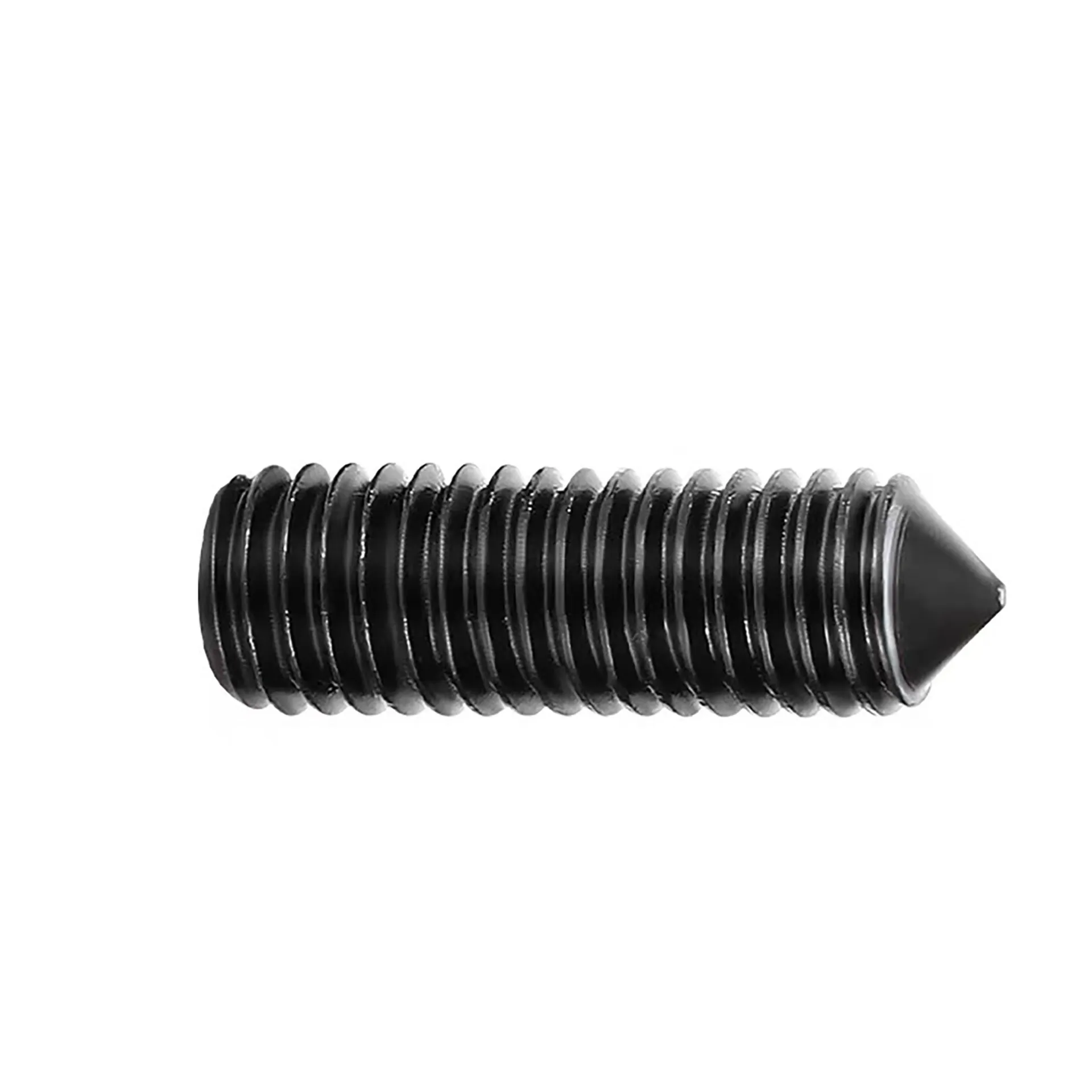

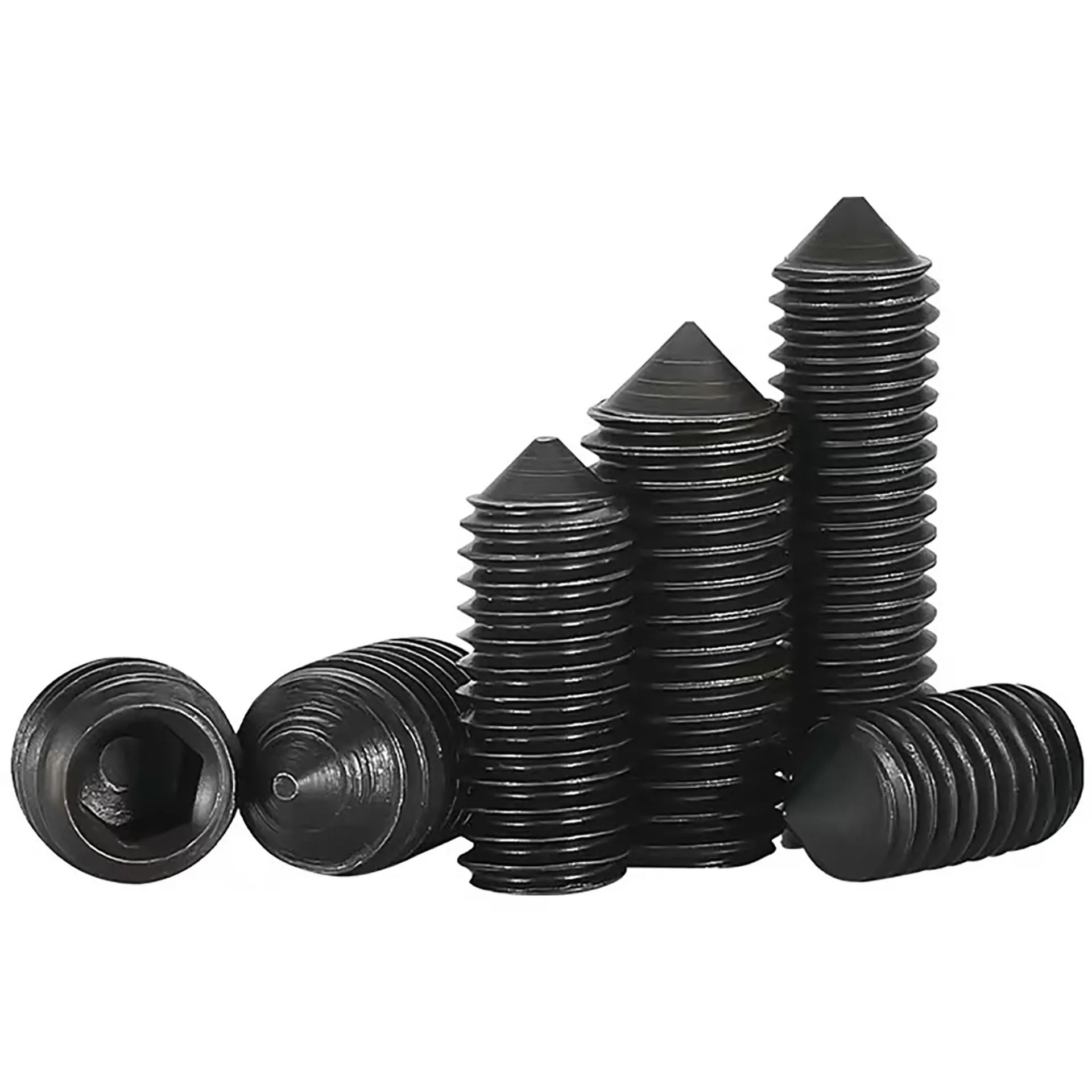

Hex Socket Cup Point Set Screws DIN 914 | Alloy Steel | Shaft Fixing
Hex Socket Cup Point Set Screws DIN 914 | Alloy Steel | Shaft Fixing
Set screws are headless screws that axially secure and prevent rotation by embedding their tapered or grooved ends into the surface of fastened components.
Core Functions:
Fix circumferential position between shafts and hubs (e.g., gears, pulleys)
Prevent axial displacement of bearings, couplings, etc.
Simplify assembly by replacing key connections

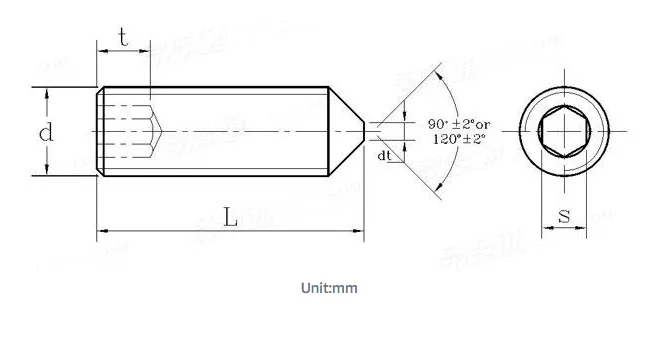

Key Structural Features
|
Item |
Standard Range |
Remarks |
|
Material |
Carbon Steel (4.8/8.8/12.9) |
Grade 12.9: Tensile ≥1220MPa |
|
|
Stainless (A2-70/A4-80) |
A4-80: Seawater corrosion-resistant |
|
Surface Treatment |
Zinc Plated, Black Oxide |
Zinc ≥5μm (48h salt spray test) |
|
|
Dacromet Coating |
Salt spray >480h (heavy corrosion resistance) |
|

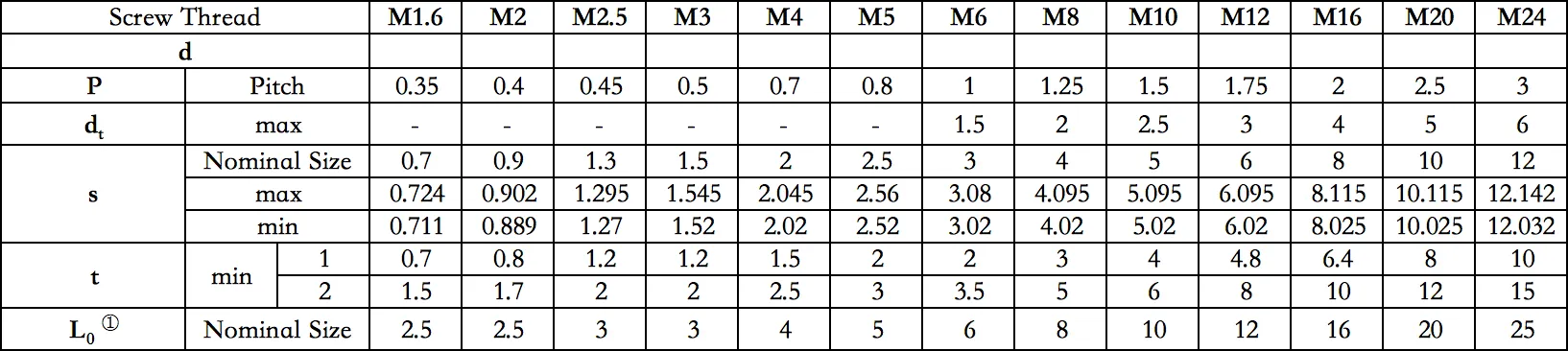

Thread Size |
M1.6 - M24 |
Fine thread (M8×0.75) enhances anti-loosening |
|
Torque Requirements |
M6 Screw: 5-7 N·m |
Use threadlocker for vibration resistance |
Key Structural Features
Key Applications:
- Mechanical Transmission
Securing pulleys to motor shafts
Axial retention of gears in reducers
- Precision Instruments
Locking focus rings in optical tubes
Bearing preload in machine tool spindles
- Automotive Industry
Fixing synchronizer rings in transmissions
Anti-rotation for steering column U-joints
- Furniture Assembly
Locking gas springs in office chairs
