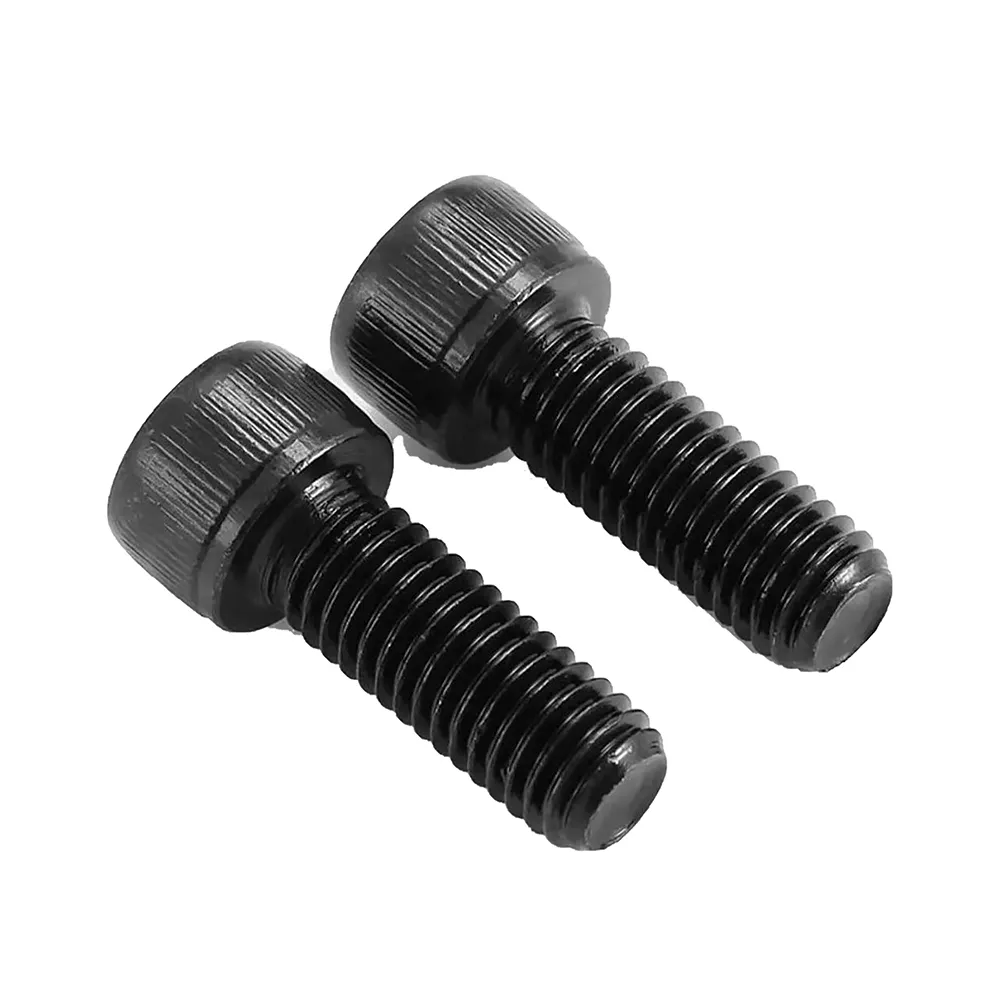

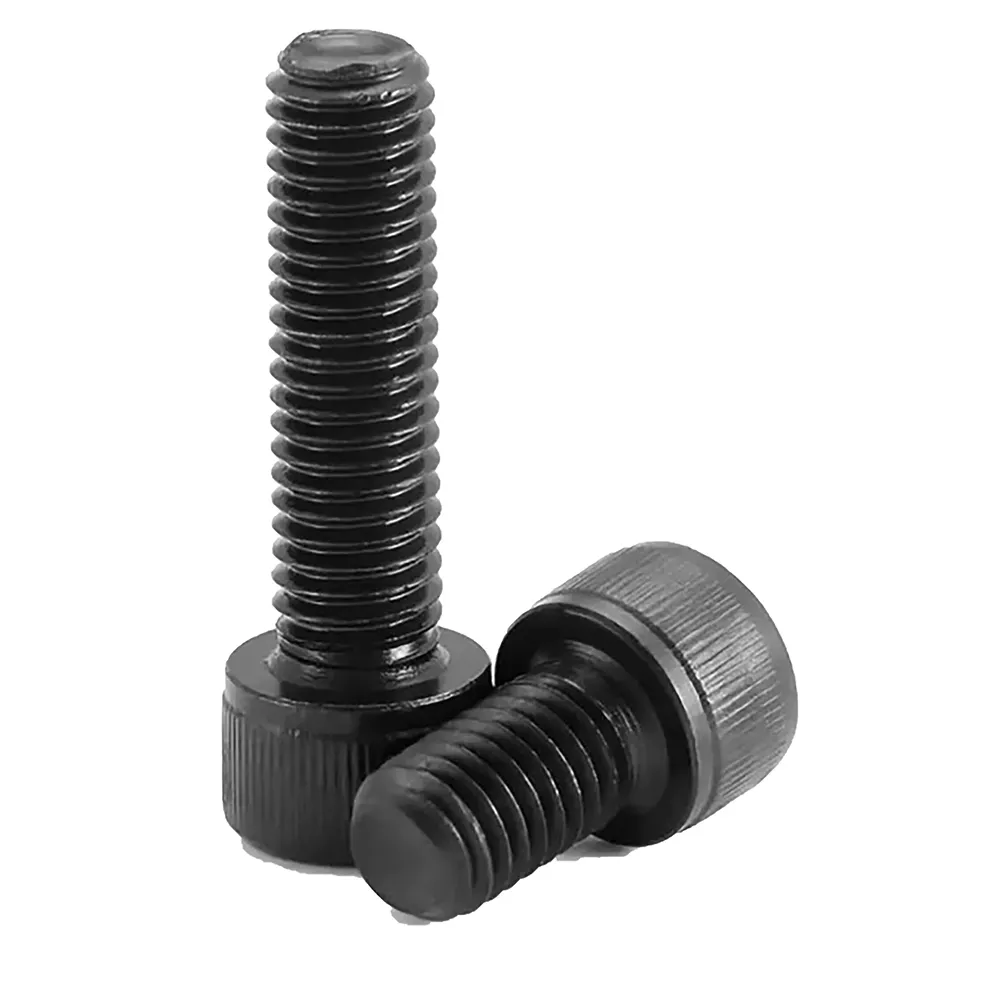

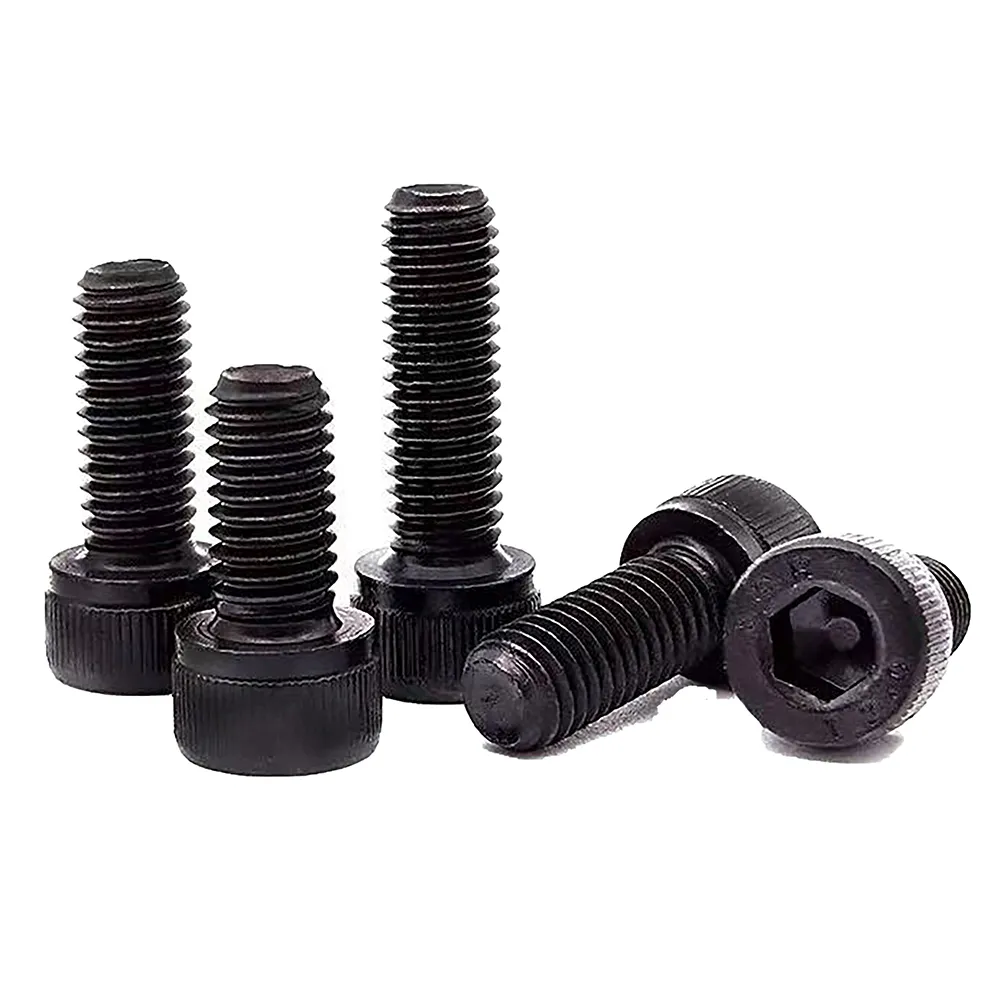

Din 912 Socket Head Cap Screw
These screws are essential in industries requiring vibration resistance and space constraints:
Robotics: Joint assembly in industrial robotic arms
Wind Turbines: Gearbox mounting in offshore installations
Medical Equipment: CT scanner frame construction
Automotive: Engine block components & transmission systems
Mold Making: Precision die clamping plates
|

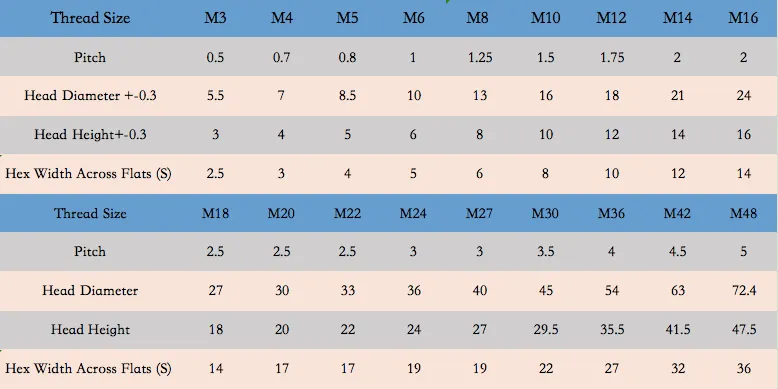

Parameter |
Technical Data |
|
Standard |
DIN 912 / ISO 4762 (Equivalent to GB/T 70.1, ASME B18.3) |
|
Strength Grade |
Class 12.9 (Options: 10.9 / 8.8 available upon request) |
|
Material |
Alloy Steel (SCM435/40Cr), Oil-Quenched & Tempered |
|
Hardness |
39-44 HRC / HV 435-530 (Controlled per EN ISO 898-1) |
|
Tensile Strength |
≥1,220 MPa |
|
Yield Strength |
≥1,100 MPa |
|
Thread Pitch |
Standard Metric Coarse Thread (Fine thread customizable) |
|
Drive Type |
Hex Socket (Allen Key) - ISO 10664 compliant |
